Halftone Tunnel

Tile Generation Through Cut Variation Base on Halftone Representation
Digital Fabrication
Collabrator: Ivan Zhang, Zhenyu Yang
Instructors: Zach Seibold, Nathan King
Toolkits: Rhino, Grasshopper, CNC milling, ceramic making
Year: 2021

Selected in Material Systems group exhibition at Harvard Ceramic Lab from January 31 to March 11, 2022 in Gallery
224.
More information via︎︎︎ https://ofa.fas.harvard.edu/ceramics/Gallery_224
https://www.flickr.com/photos/harvardarts/sets/72177720296377848/

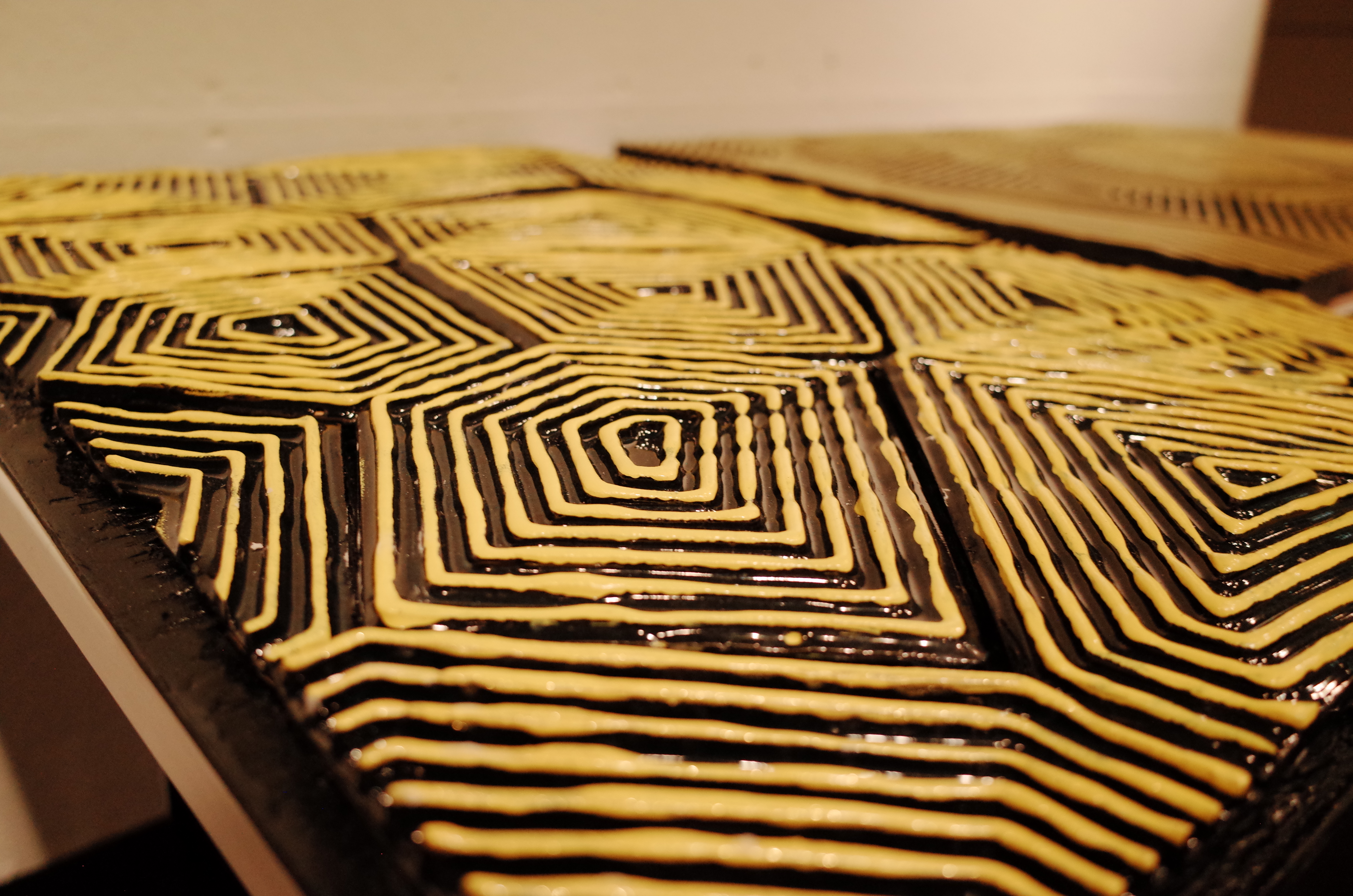

Our project represents a computing-based manufacturing process that subdivides the superposition patterns of any two images by digital image halftoning and generating cut variations through depth and width using CNC processes. This ultimately forms a rich and wide-ranged tessellation which then forms the basis of how we create our ceramic piece.

Halftone processing transforms the grayscale information of images into different plane effects and cutting paths controlled by two variables: width and depth. The effect then varies depending on how deep the CNC drill goes, after testing multiple depth and width variations using MDF, our team has chosen a cut angle of 15 degrees and a cut depth of 0.35 inches to demonstrate the tessellation effect at its fullest.

Research Methods

Fundamental Principles

We wanted to generate the tunnel image through cut variation based on halftone representation, which is capable of converting color-separation images into halftone images. Using CNC processes to generate this image, we investigated how using different drill bit sizes, different angles, different widths, and different depths allowed for different readings of the tunnel. A general overview of the framework described in this paper are as follows:

(1) Image processing from color-separation into halftone images

(2) Conversion from image to CNC milling path

(3) Experiment with CNC techniques that affect the image representation on the tile

(4) Pressing ceramics

(5) Glazing experiment that affects the image representation on the tile

Image Processing

This project superimposess two different images, one is the gray display of any image, and the other is the strip geometric pattern to simulate continuous-tone imagery with legible reading. The selected image (Tunnel) was first processed into grayscale and superimposed with the texture image (Voronoi). By adjusting the relevant parameters of each threshold, the appropriate superimposed part is selected to represent the shadow information in the original pattern. We can manipulate the image in two ways. The first is to use a wider edge to define the overlap space, and use a thinner path to display the rest. The second is to use a darker color to define the overlap space based on gray difference and use a brighter color to display the rest.

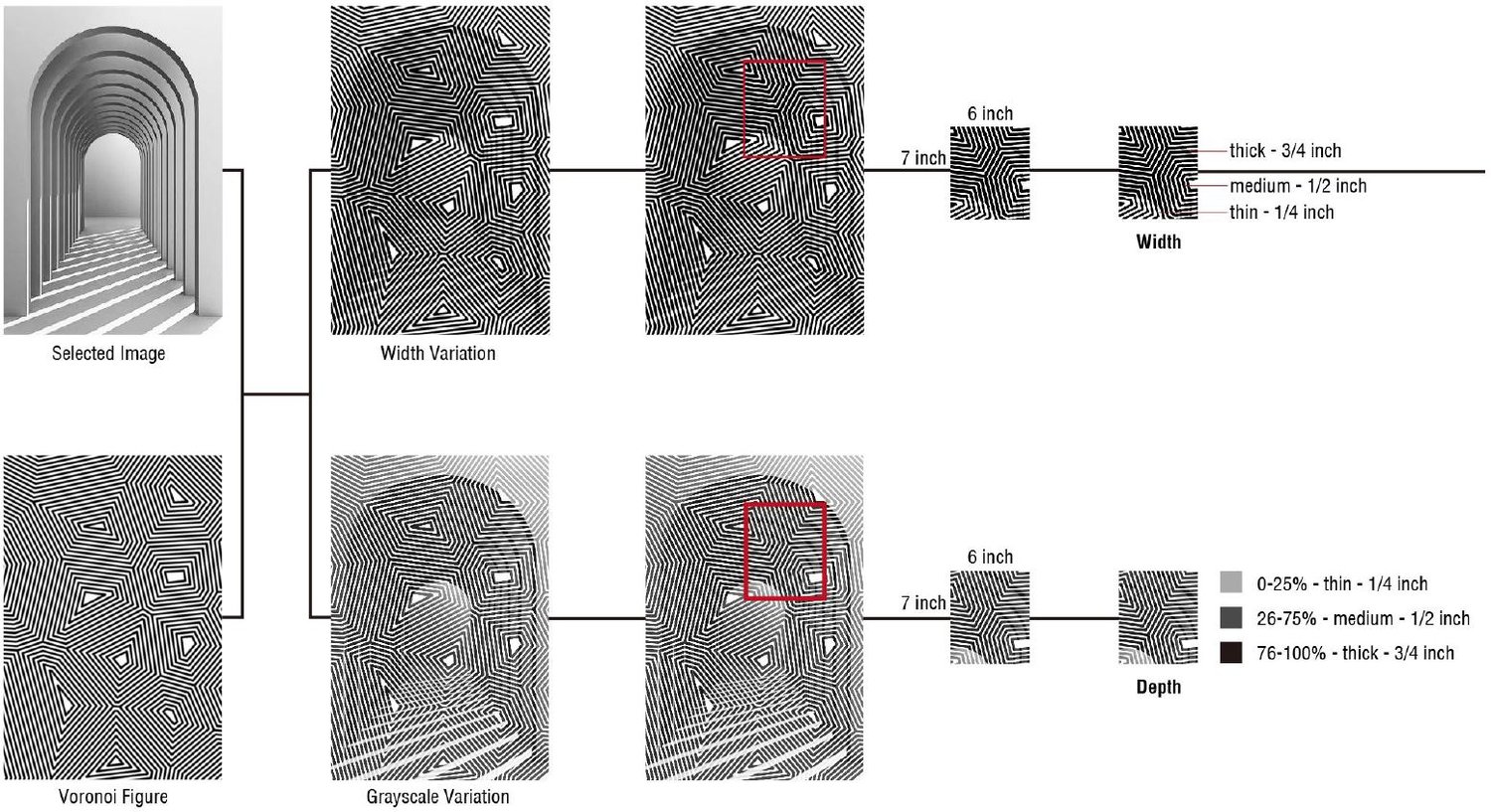

Selected Image Halftoning

CNC Width Variation Workflow

CNC Depth Variation Workflow

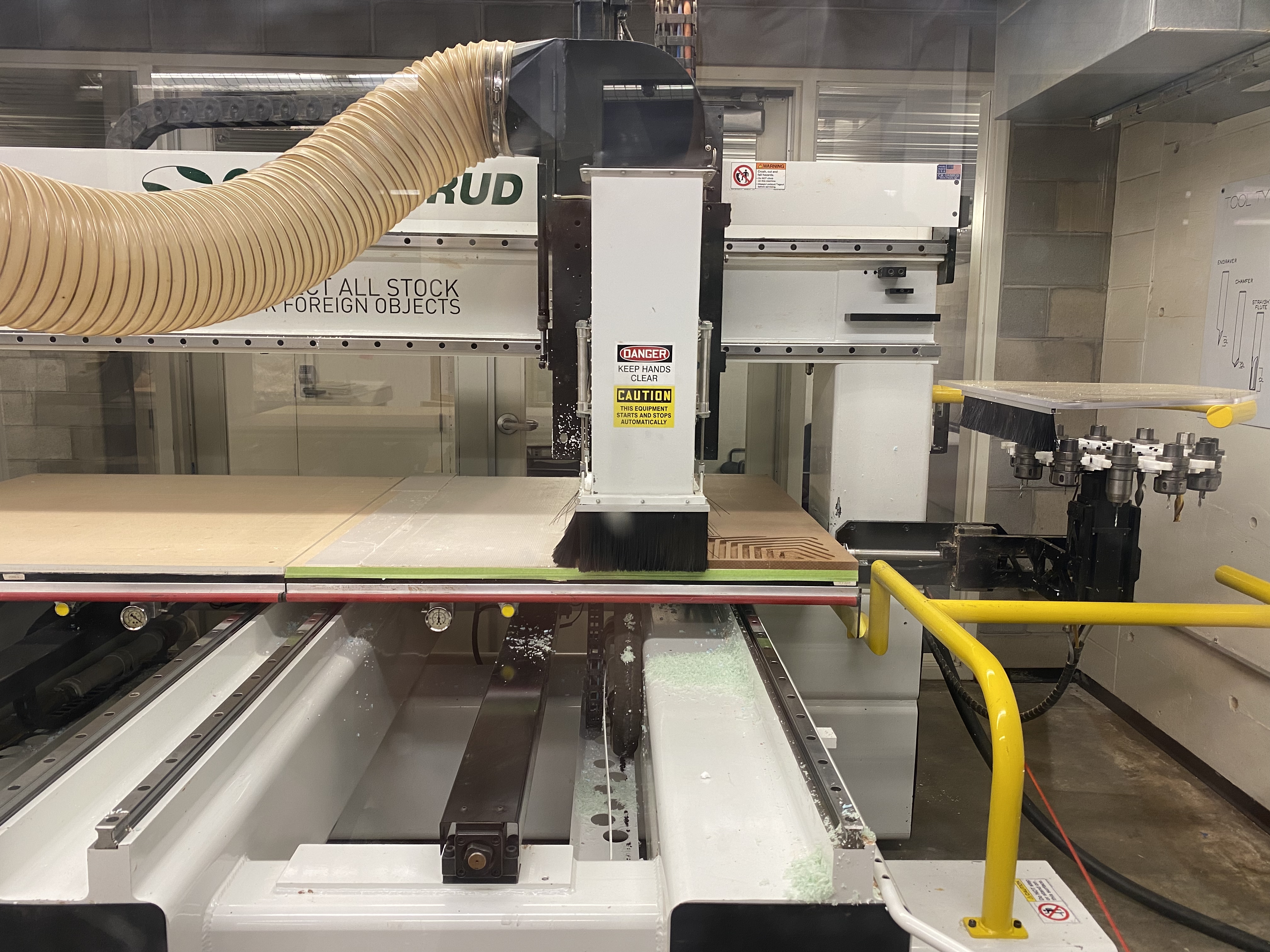

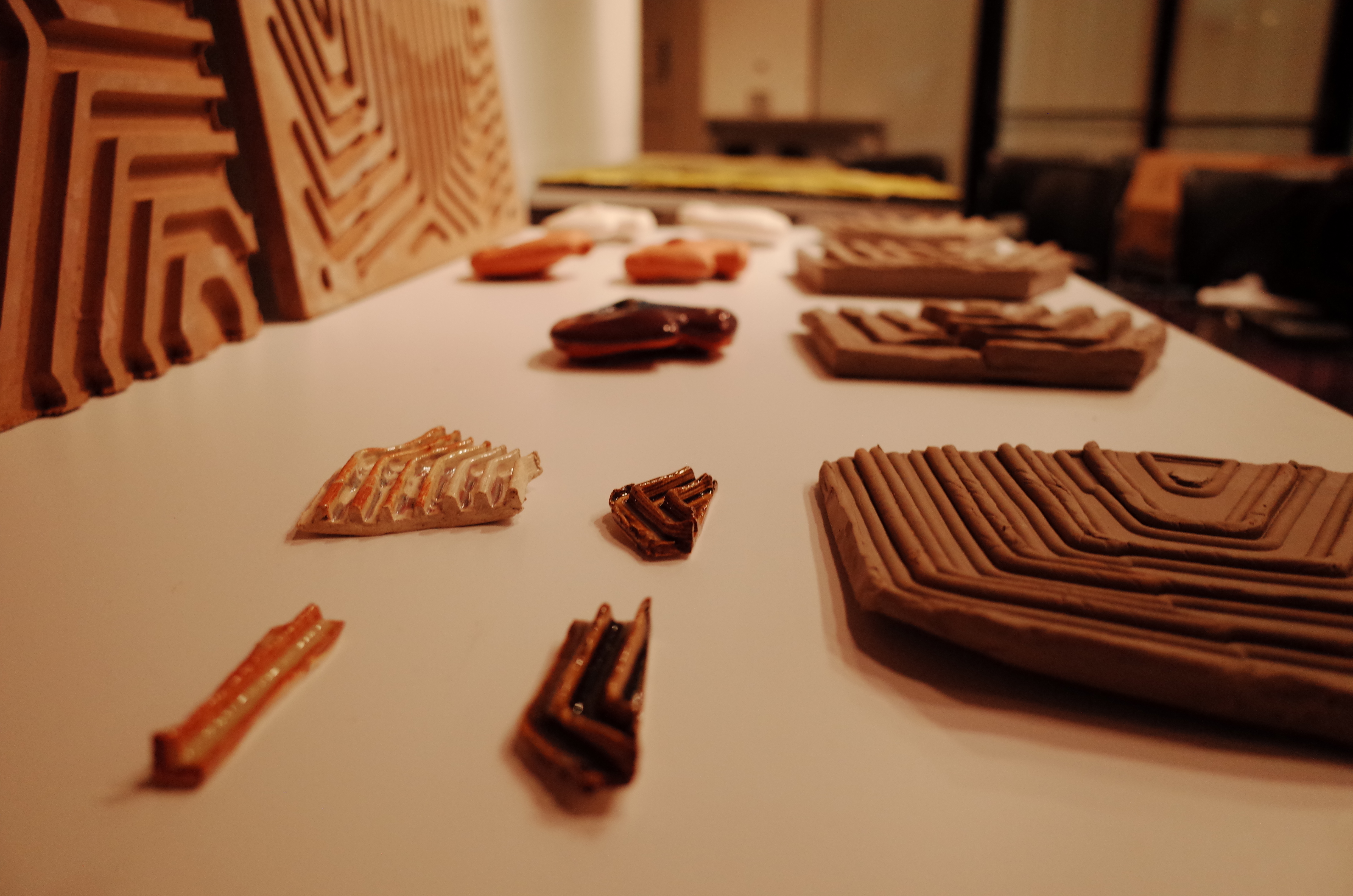

CNC Testing & Variations

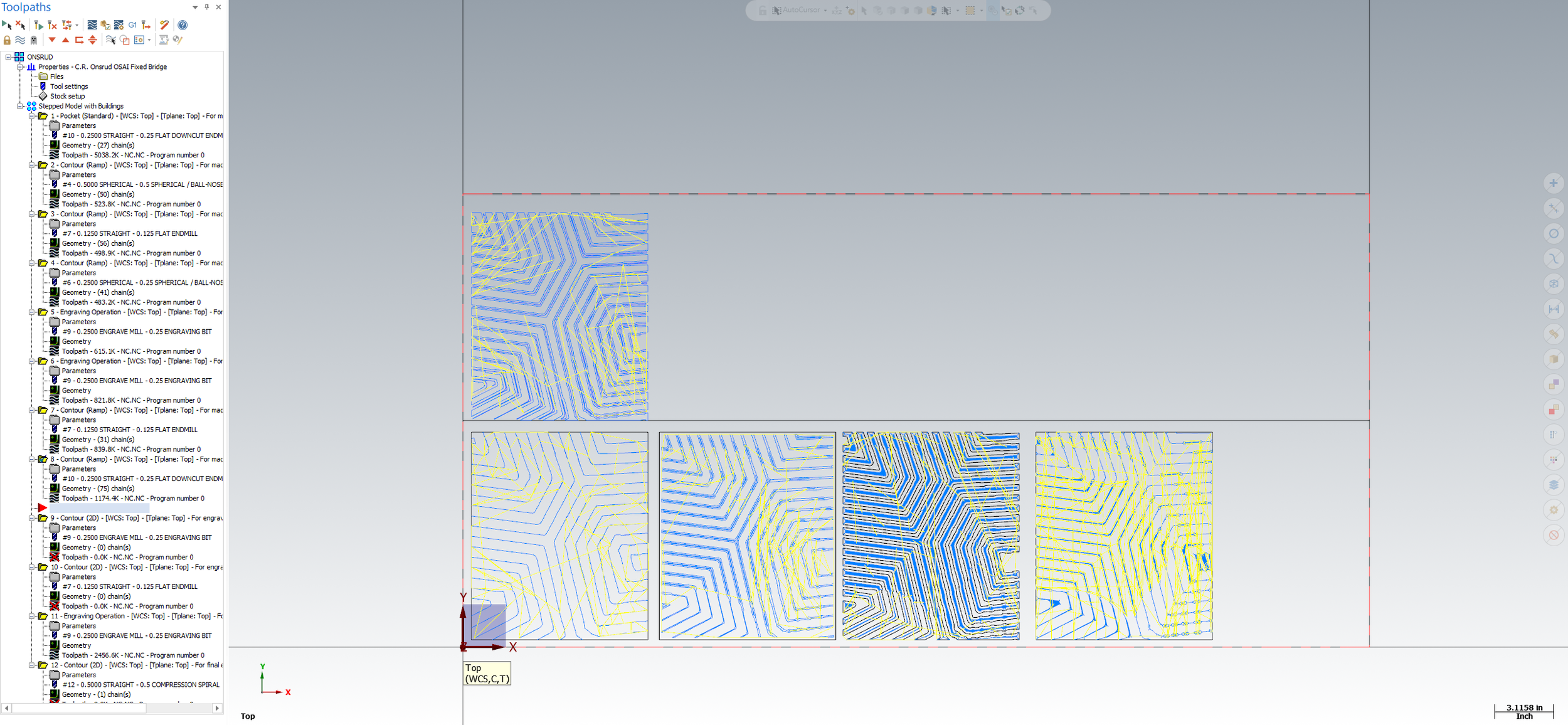

The purpose of this operation is to transform the visual pattern formed by image processing into a three-dimensional model by Computerized Numerical Control milling, and further adopting this model as the mold to produce our ceramic tiles. Our group also tested different cutting paths to generate diverse sections and texture effects as separate iterations for comparison. The two patterns formed by image processing express the graphic information by width and grayscale as variables respectively. Through CNC operation, two or three different 3D stripe patterns are derived from each pattern through different cutting methods (contour and pocket) and different drill bits scale settings. In detail, in terms of width, according to the line width range from the halftone image, we used three drill bits, the widest uses a ¾ ball drill, the middle uses a ½ ball drill, and the thinnest a ¼ ball drill.

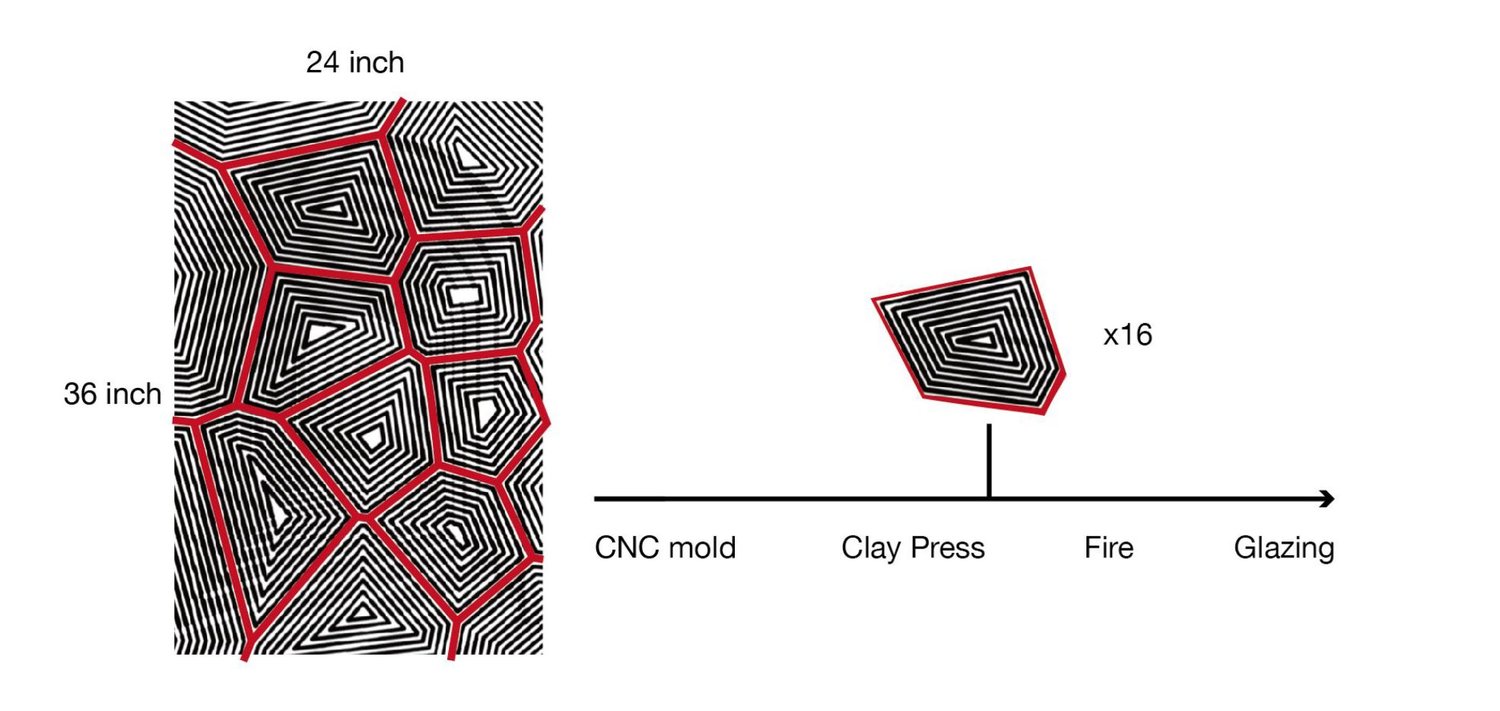

Panel Selection

The Voronoi texture is divided into 16 pieces by its enclosure edge. After milling the CNC mold on MDF, we then cut the MDF into 16 parts, and pressed clay into each part. Ideally, the ceramic should be the inverse pattern of the mold, which in comparison should have been the better way to read the image. In order to have a smooth release process of the clay, we sealed the wood with shellac and then powdered the mold pieces with corn starch to ensure a smooth process. We ultimately ended up using white stoneware as terracotta didn’t produce the desired results we wanted during the early tests. Once we were finished with pressing, we tried to flatten the pieces by sitting them on MDF boards with the mold pieces on top to let them be as smooth as possible.
